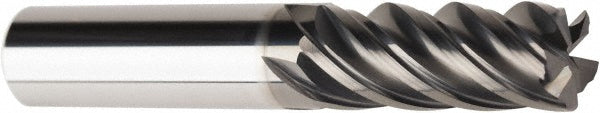

1/2" 5-Flute Solid Carbide Corner Radius End Mill, AlCrN - American Tool Service 764-5000-030
MFR# 764-5000-030
$92.01List $115.95
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingAlCrN
Description
The American Tool Service 764-5000-030 is a 1/2 5-flute Solid Carbide (Micrograin) corner radius end mill with a AlCrN finish for longer tool life. 1-1/2 length of cut, 3 overall length.
Specifications
CentercuttingYes
Coating finishAlCrN
Corner radius0.0300
Corner radius tolerance+0.00020 to -0.00020 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in1-1/2
Length typeRegular
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000000 to -0.002000 in
Number of flutes5
Overall length in3
Overall length tolerance0.0600 in
Shank diameter in1/2
Shank diameter tolerance+0.0000 to -0.0005 in
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0010
