APT
Indexable Boring - APT LD12M
MFR# LD12MSeries Super-Lok
$82.50List $105.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

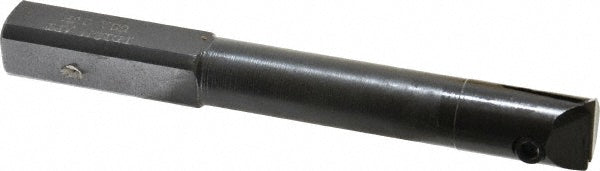

The APT LD12M indexable boring. Series Super-Lok.
Specifications
Compatible insert shapeTriangle
Compatible insert size code321
Coolant throughNo
Cutting directionNeutral
Cutting tool applicationBoring
Hand of holderNeutral
Hex shank size in5/8
Insert compatibilityTPG 321
Insert holding methodScrew
Insert inscribed circle in3/8
Insert thickness in1/8
Maximum bore depth in3-3/4
Minimum bore diameter in3/4
Multi use toolNo
Number of inserts included in order1
Overall length in5-3/4
RakePositive
Shank diameter in3/4
