APT

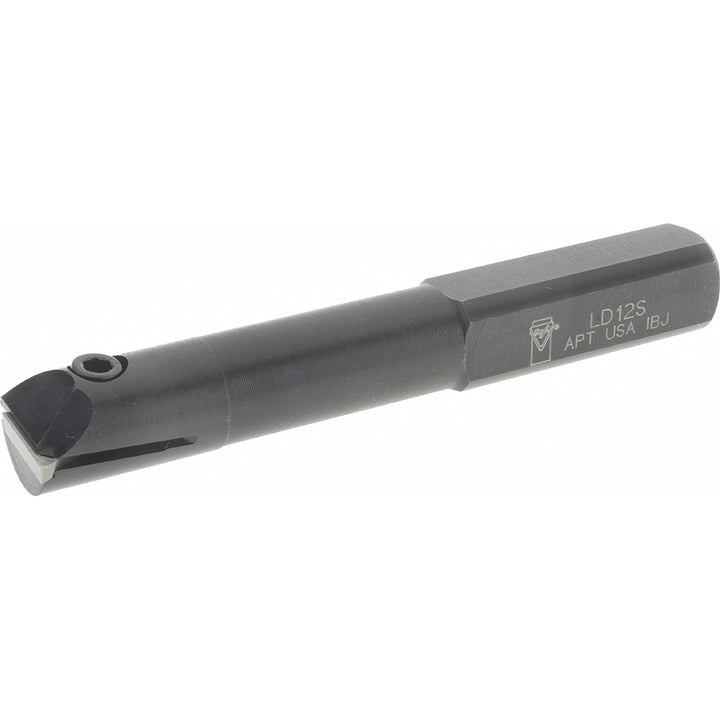

Indexable Boring - APT LD12S
MFR# LD12SSeries Super-Lok
$79.99List $102.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The APT LD12S indexable boring. Series Super-Lok.
Specifications
Compatible insert shapeTriangle
Compatible insert size code321
Coolant throughNo
Cutting directionNeutral
Cutting tool applicationBoring
Hand of holderNeutral
Hex shank size in5/8
Insert compatibilityTPG 321
Insert holding methodScrew
Insert inscribed circle in3/8
Insert thickness in1/8
Maximum bore depth in2-3/4
Minimum bore diameter in3/4
Multi use toolNo
Number of inserts included in order1
Overall length in4-3/4
RakePositive
Shank diameter in3/4
