APT

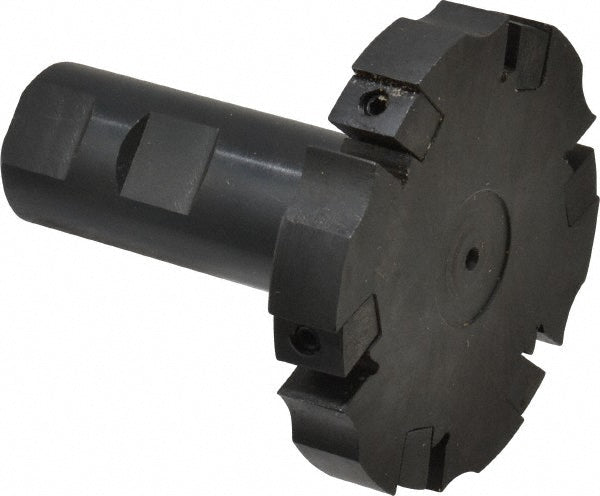

Indexable Milling Cutters - APT SM3610R-2
MFR# SM3610R-2Series Slot Master
$301.53List $386.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Cutter dia.3
Description
The APT SM3610R-2 indexable milling cutters. Series Slot Master.
Specifications
Compatible insert styleCTA
Complete insert compatibilityCTA-2
Connection typeShank
Cutter body width0.3300
Cutter diameter in3
Cutting directionRight Hand
Cutting width in3/8
Insert holding methodWedge
Insert inscribed circle (mm)0.35
Maximum cutting width0.5300
Maximum depth of cut0.9370
Minimum cutting width0.3750
Number of cutter inserts6
Number of teeth6
RadiusNo
RakePositive
Shank diameter in1
Shank length2.6700
Toolholder styleSM10; SM24; SM34; SM36; SM48; SM61
Tooth typeStaggered
Wedge numberW-2
Weldon flatYes
