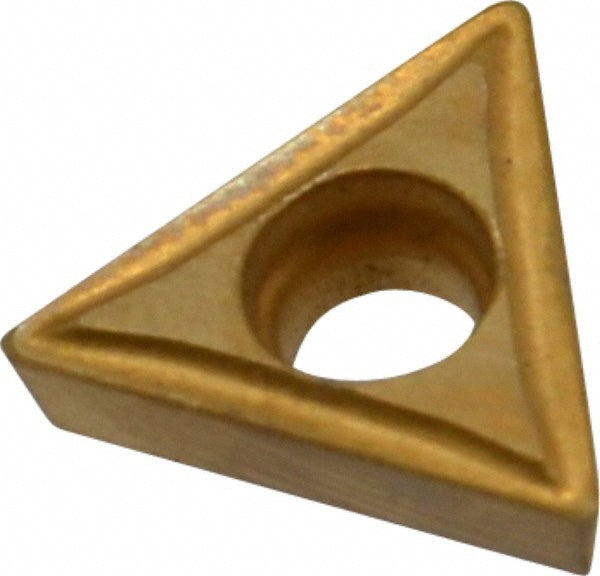

Triangle 1/4" IC Carbide Insert, Grade TC, TiN - APT TPGH21.51 TC
MFR# TPGH21.51 TCCat# TPGH21.51Series TPGH
$9.64List $12.15
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeTC
MaterialCarbide
CoatingTiN
Description
The APT TPGH21.51 TC is a carbide indexable insert, grade TC, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerCommon
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1200
Included angle60degree
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4330
Insert materialCarbide
Insert shapeTriangle
Insert size code21.51
Insert styleTPGH
Insert thickness in3/32
Length range0.4000 - 0.5000
Manufacturers catalog numberTPGH21.51
Manufacturer gradeTC
Material gradeC6
Maximum depth of cut0.1442
Multi use applicationTurning; Counterboring; Boring; Chamfering
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width0.4330in
Wiper edgeNo
