APT

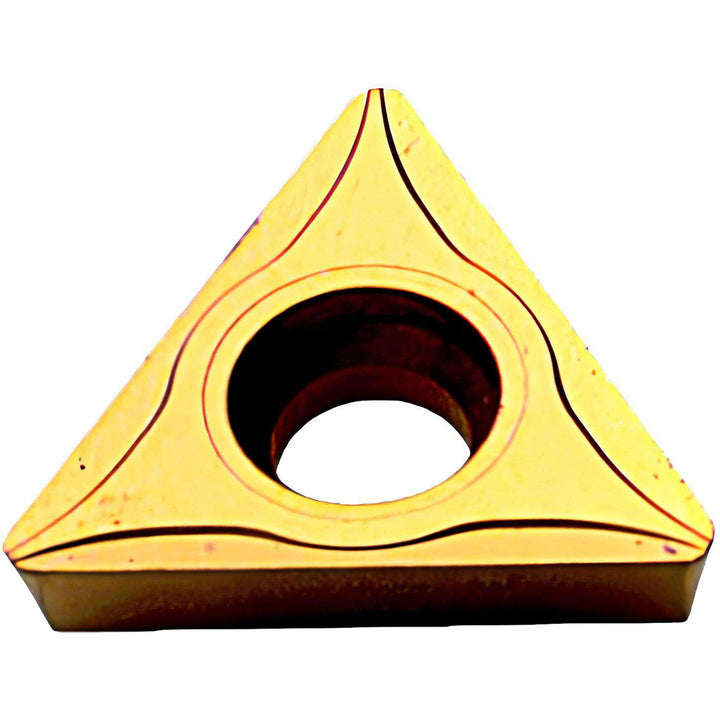

Triangle 1/4" IC Carbide Insert, Grade C2 - APT TPGH21.52 C2
MFR# TPGH21.52 C2Cat# TPGH21.52Series TPGH
$6.15List $7.88
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeC2
MaterialCarbide
Description
The APT TPGH21.52 C2 is a carbide indexable insert, grade C2. Suited for cast iron.
Specifications
Chip breakerCommon
Clearance codeP
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1200
Included angle60degree
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4330
Insert materialCarbide
Insert shapeTriangle
Insert size code21.52
Insert styleTPGH
Insert thickness in3/32
Length range0.4000 - 0.5000
Manufacturers catalog numberTPGH21.52
Manufacturer gradeC2
Material gradeC2
Maximum depth of cut0.1442
Multi use applicationTurning; Counterboring; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialCast Iron
RakePositive
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width0.4330in
Wiper edgeNo
