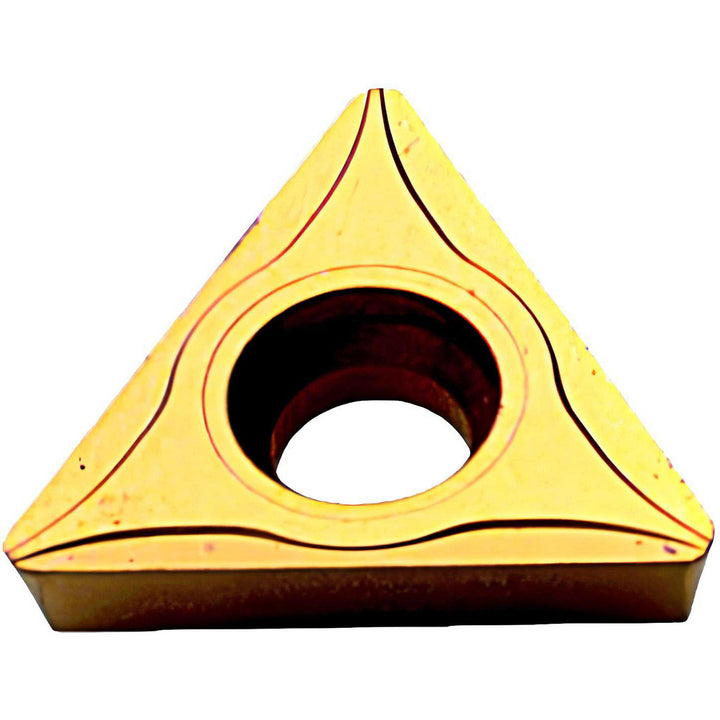

Triangle 1/4" IC Carbide Insert, Grade TC, TiN - APT TPGH21.52 TC
MFR# TPGH21.52 TCCat# TPGH21.52Series TPGH
$6.60List $8.46
Save 21%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeTC
MaterialCarbide
CoatingTiN
Description
The APT TPGH21.52 TC is a carbide indexable insert, grade TC, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerCommon
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1200
Included angle60degree
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4330
Insert materialCarbide
Insert shapeTriangle
Insert size code21.52
Insert styleTPGH
Insert thickness in3/32
Length range0.4000 - 0.5000
Manufacturers catalog numberTPGH21.52
Manufacturer gradeTC
Material gradeC6
Maximum depth of cut0.1442
Multi use applicationTurning; Counterboring; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width0.4330in
Wiper edgeNo
