Associated Spring Raymond

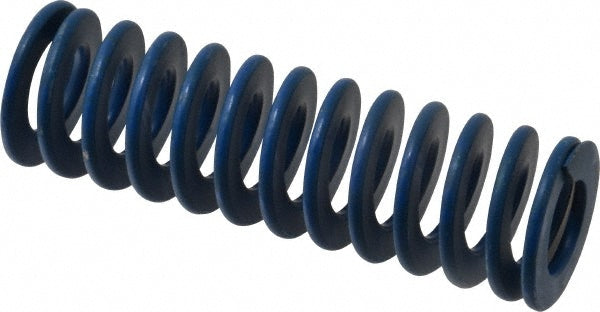

Die Spring - Associated Spring Raymond 103-616
MFR# 103-616
$21.07List $25.99
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 103-616 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorBlue
Duty ratingMedium-Duty
Free length in4
Hole diameter in1-1/4
Iso 90012008 Certified
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection2.0000
Maximum deflection load lb352.00
Rod diameter in5/8
Spring rate176.00
StandardsANAB Accredited
Wire shapeTrapezoidal
