Associated Spring Raymond
Die Spring - Associated Spring Raymond 103-720
MFR# 103-720
$32.08List $39.57
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

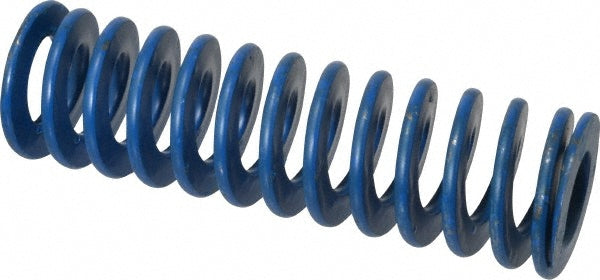

The Associated Spring Raymond 103-720 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorBlue
Duty ratingMedium-Duty
Free length in5
Hole diameter in1-1/2
Iso 90012008 Certified
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection2.5000
Maximum deflection load lb525.00
Rod diameter in3/4
Spring rate210.00
StandardsANAB Accredited
Wire shapeTrapezoidal
