Associated Spring Raymond

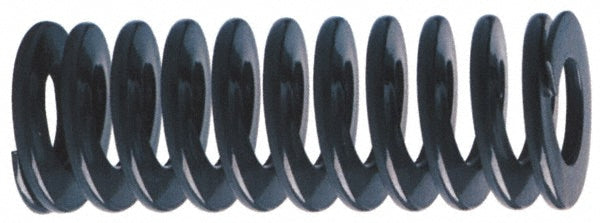

Die Spring - Associated Spring Raymond 103-822
MFR# 103-822
$62.43List $77.01
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 103-822 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorBlue
Free length in5-1/2
Hole diameter in2
Iso 90012008 Certified
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection2.7500
Maximum deflection load lb1078.00
Rod diameter1.0000
Spring rate405.00
StandardsANAB Accredited
Wire shapeTrapezoidal
