Associated Spring Raymond

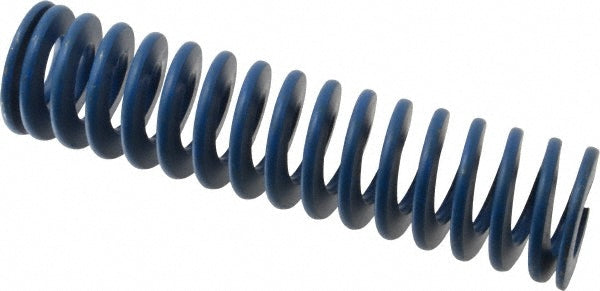

Die Spring - Associated Spring Raymond 103-832
MFR# 103-832
$78.92List $99.06
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 103-832 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorBlue
Free length in8
Hole diameter in2
Iso 90012008 Certified
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection4.0000
Maximum deflection load lb1140.00
Rod diameter1.0000
Spring rate285.00
StandardsANAB Accredited
Wire shapeTrapezoidal
