Associated Spring Raymond

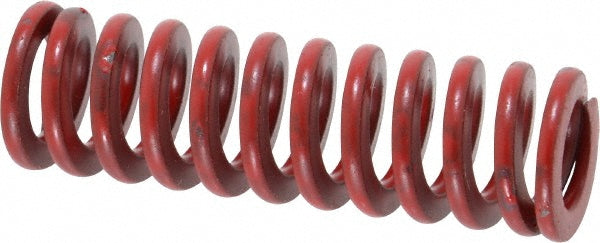

Die Spring - Associated Spring Raymond 104-308
MFR# 104-308
$5.01List $6.29
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 104-308 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorRed
Duty ratingMedium Heavy-Duty
Free length in2
Hole diameter in5/8
Iso 90012008 Certified
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection0.7400
Maximum deflection load lb109.50
Rod diameter in11/32
Spring rate155.00
StandardsANAB Accredited
Wire shapeTrapezoidal
