Associated Spring Raymond

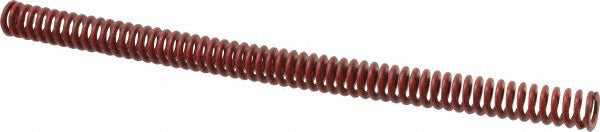

Die Spring - Associated Spring Raymond 104-448
MFR# 104-448
$31.29List $38.59
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 104-448 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorRed
Duty ratingMedium Heavy-Duty
Free length in12
Hole diameter in3/4
Iso 90012008 Certified
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection4.4400
Maximum deflection load lb159.80
Rod diameter in3/8
Spring rate35.00
StandardsANAB Accredited
Wire shapeTrapezoidal
