Associated Spring Raymond

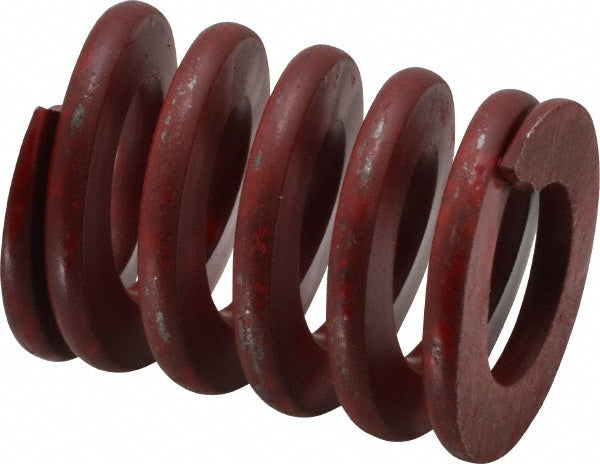

Die Spring - Associated Spring Raymond 104-505
MFR# 104-505
$7.92List $9.77
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 104-505 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorRed
Duty ratingMedium Heavy-Duty
Free length in1-1/4
Hole diameter in1
Iso 90012008 Certified
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection0.4600
Maximum deflection load lb288.60
Rod diameter in1/2
Spring rate653.00
StandardsANAB Accredited
Wire shapeTrapezoidal
