Associated Spring Raymond

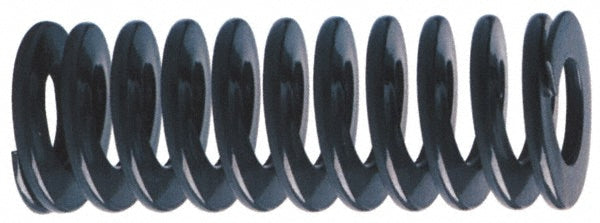

Die Spring - Associated Spring Raymond 104-840
MFR# 104-840
$107.67List $135.15
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 104-840 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorRed
Free length in10
Hole diameter in2
Iso 90012008 Certified
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection3.7000
Maximum deflection load lb962.00
Rod diameter1.0000
Spring rate260.00
StandardsANAB Accredited
Wire shapeTrapezoidal
