Associated Spring Raymond

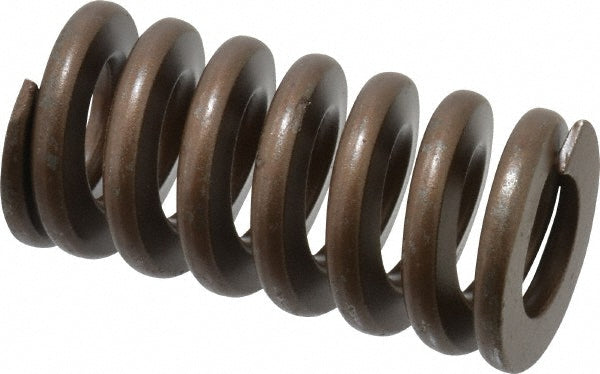

Die Spring - Associated Spring Raymond 105-712
MFR# 105-712
$27.87List $34.98
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 105-712 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorGold
Duty ratingHeavy-Duty
Free length in3
Hole diameter in1-1/2
Iso 90012008 Certified
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection0.9000
Maximum deflection load lb1170.00
Rod diameter in3/4
Spring rate1300.00
StandardsANAB Accredited
Wire shapeTrapezoidal
