Associated Spring Raymond

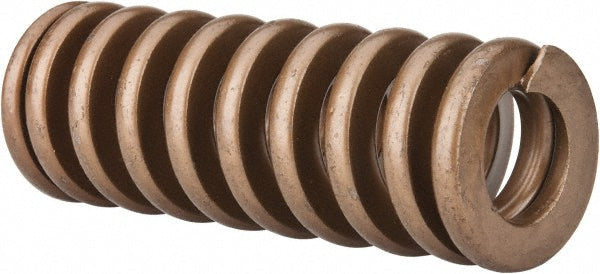

Die Spring - Associated Spring Raymond 105-716
MFR# 105-716
$34.75List $43.62
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 105-716 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorGold
Duty ratingHeavy-Duty
Free length in4
Hole diameter in1-1/2
Iso 90012008 Certified
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection1.2000
Maximum deflection load lb1094.40
Rod diameter in3/4
Spring rate912.00
StandardsANAB Accredited
Wire shapeTrapezoidal
