Associated Spring Raymond

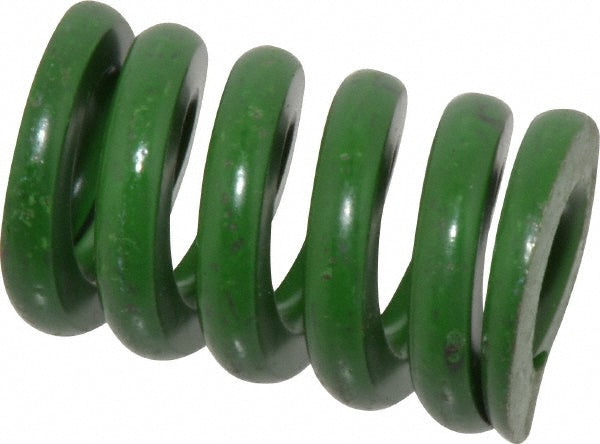

Die Spring - Associated Spring Raymond 106-506
MFR# 106-506
$10.99List $13.80
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 106-506 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorGreen
Duty ratingExtra Heavy-Duty
Free length in1-1/2
Hole diameter in1
Iso 90012008 Certified
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection0.3800
Maximum deflection load lb600.00
Rod diameter in1/2
Spring rate1600.00
StandardsANAB Accredited
Wire shapeTrapezoidal
