Associated Spring Raymond

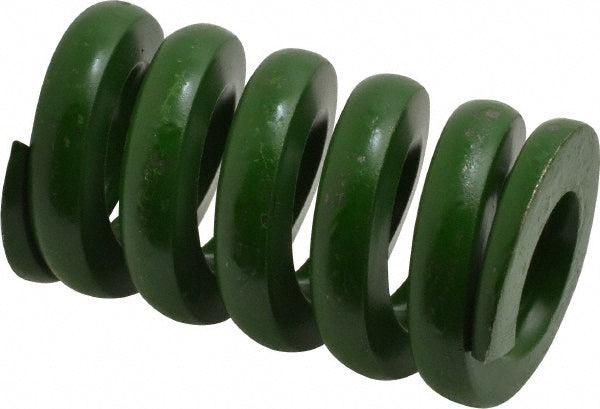

Die Spring - Associated Spring Raymond 106-710
MFR# 106-710
$33.92List $42.58
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 106-710 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorGreen
Duty ratingExtra Heavy-Duty
Free length in2-1/2
Hole diameter in1-1/2
Iso 90012008 Certified
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection0.6300
Maximum deflection load lb1840.00
Rod diameter in3/4
Spring rate3285.00
StandardsANAB Accredited
Wire shapeTrapezoidal
