Associated Spring Raymond

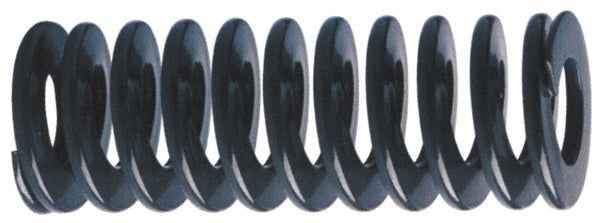

Die Spring - Associated Spring Raymond 106-840
MFR# 106-840
$165.40List $207.61
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 106-840 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorGreen
Free length in10
Hole diameter in2
Iso 90012008 Certified
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection2.5000
Maximum deflection load lb2100.00
Rod diameter1.0000
Spring rate884.00
StandardsANAB Accredited
Wire shapeTrapezoidal
