Associated Spring Raymond

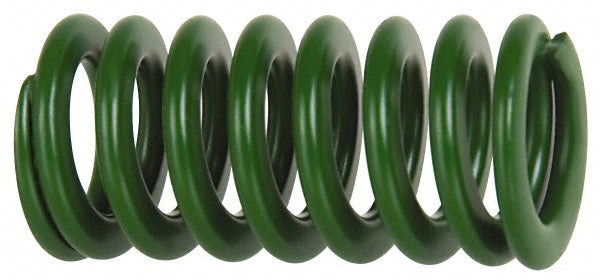

Die Spring - Associated Spring Raymond 203-814
MFR# 203-814
$18.60List $23.35
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 203-814 is a chromium alloy steel die spring.
Specifications
ColorGreen
Duty ratingLight-Duty
Free length (mm)89.00
Iso number10243
MaterialChromium Alloy Steel
Maximum deflection load lb857.65
Maximum deflection load n3815.00
Maximum deflection (mm)35.00
Rod diameter (mm)25.00
Travel to solid load (mm)35.00
Wire shapeTrapezoidal
