Associated Spring Raymond

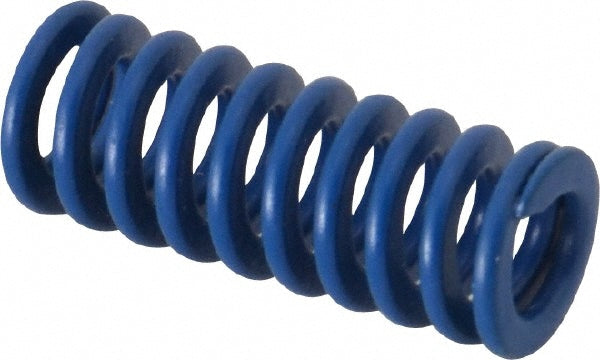

Die Spring - Associated Spring Raymond 204-104
MFR# 204-104
$1.60List $2.02
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 204-104 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorBlue
Free length in1
Iso 90012008 Certified
Iso number10243
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection load n152.00
Maximum deflection (mm)9.50
Rod diameter (mm)5.00
Spring rate91.36
StandardsANAB Accredited
Travel to solid load (mm)9.50
Wire shapeTrapezoidal
