Associated Spring Raymond

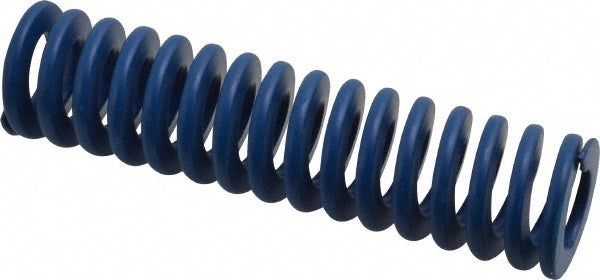

Die Spring - Associated Spring Raymond 204-516
MFR# 204-516
$7.71List $9.67
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 204-516 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorBlue
Free length in4
Iso 90012008 Certified
Iso number10243
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection load n1254.00
Maximum deflection (mm)38.00
Rod diameter (mm)12.50
Spring rate188.44
StandardsANAB Accredited
Travel to solid load (mm)38.00
Wire shapeTrapezoidal
