Associated Spring Raymond

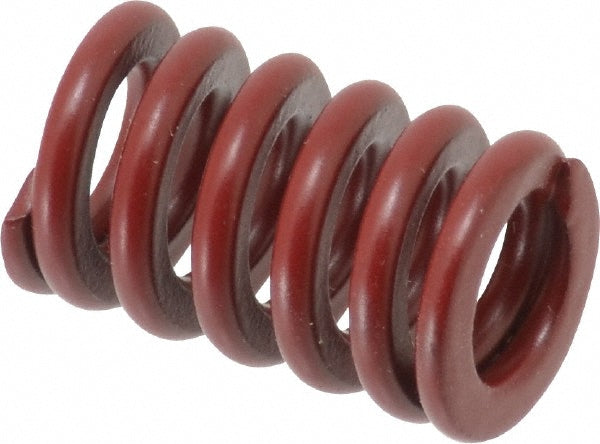

Die Spring - Associated Spring Raymond 205-304
MFR# 205-304
$2.20List $2.76
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 205-304 is a chromium alloy steel die spring.
Specifications
ColorRed
Duty ratingStrong
Free length (mm)25.00
Iso number10243
MaterialChromium Alloy Steel
Maximum deflection load lb127.65
Maximum deflection load n567.80
Maximum deflection (mm)7.50
Rod diameter (mm)8.00
Travel to solid load (mm)7.50
Wire shapeTrapezoidal
