Associated Spring Raymond

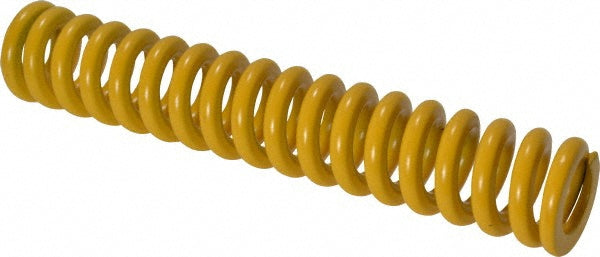

Die Spring - Associated Spring Raymond 206-314
MFR# 206-314
$4.28List $5.37
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 206-314 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorYellow
Free length in3-1/2
Iso 90012008 Certified
Iso number10243
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection load n649.00
Maximum deflection (mm)22.00
Rod diameter (mm)8.00
Spring rate168.45
StandardsANAB Accredited
Travel to solid load (mm)22.00
Wire shapeTrapezoidal
