Associated Spring Raymond

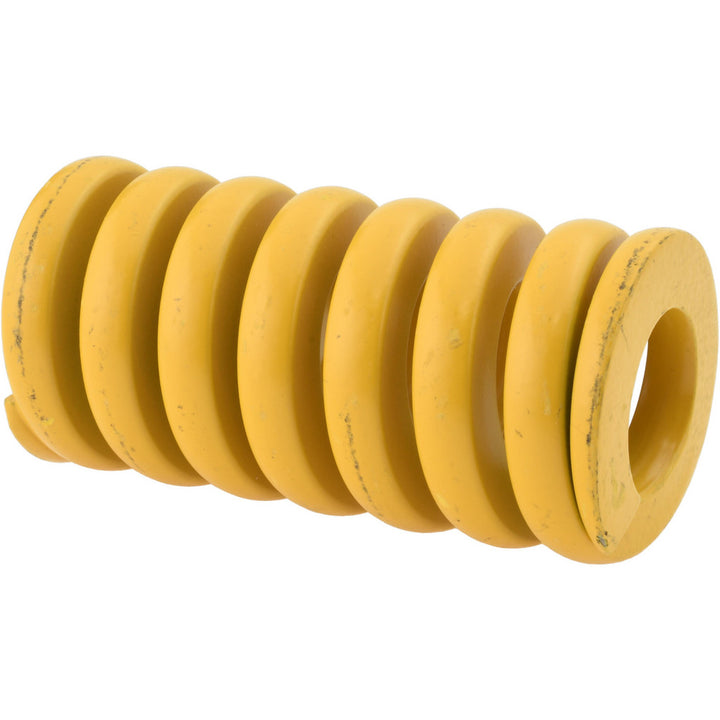

Die Spring - Associated Spring Raymond 206-405
MFR# 206-405
$4.05List $5.08
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 206-405 is a chromium alloy steel die spring.
Specifications
ColorYellow
Duty ratingExtra Strong
Free length in1-1/4
Iso number10243
MaterialChromium Alloy Steel
Maximum deflection load n1792.00
Maximum deflection (mm)8.00
Rod diameter (mm)10.00
Travel to solid load (mm)8.00
Wire shapeTrapezoidal
