Associated Spring Raymond

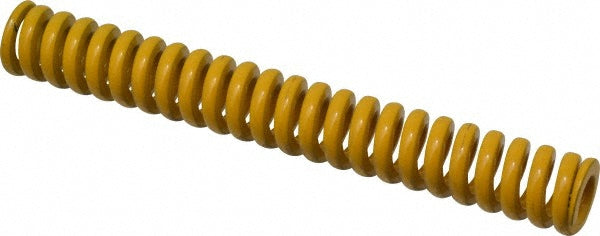

Die Spring - Associated Spring Raymond 206-424
MFR# 206-424
$15.89List $19.95
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 206-424 is a chromium alloy steel die spring.
Specifications
ColorYellow
Duty ratingExtra Strong
Free length (mm)152.00
Iso number10243
MaterialChromium Alloy Steel
Maximum deflection load lb333.17
Maximum deflection load n1482.00
Maximum deflection (mm)38.00
Rod diameter (mm)10.00
Travel to solid load (mm)38.00
Wire shapeTrapezoidal
