Atlas Workholding

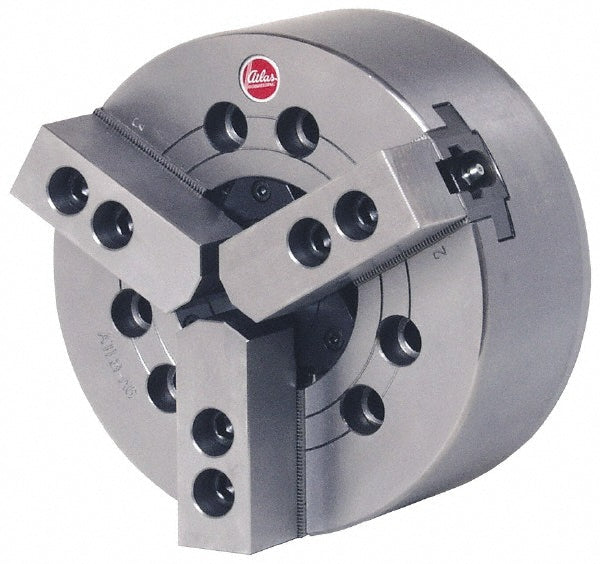

3-Jaw Lathe Chuck - Atlas Workholding ATL12-A8
MFR# ATL12-A8
$3,871.20List $4,255.70
Save 9%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Atlas Workholding ATL12-A8 is a lathe chuck.
Specifications
Chuck actuation styleDrawbar
Chuck diameter in12
Force per jaw lb31680
Jaw interface typeSerrated
Jaw stroke diameter0.4170
Maximum drawbar pulling force lbf12363.00
Maximum jaw capacity11.9700
Maximum rpm3300
Maximum static gripping force lbf32372.00
Minimum jaw capacity1.9780
Mount typeA2-8
Number of jaws3
Operation typeHydraulic
Piston stroke length0.9050
Through hole diameter3.5820
