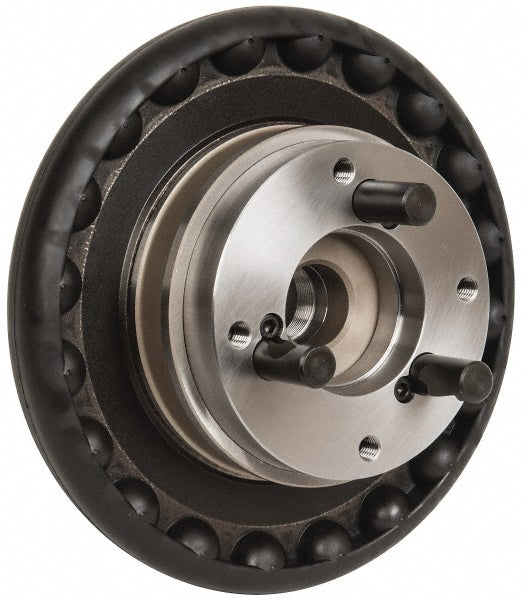

Lathe Collet Chuck - Atlas Workholding PB23-D4
MFR# PB23-D4
$1,905.19List $3,012.16
Save 36%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Atlas Workholding PB23-D4 is a Lathe Collet Chuck.
Specifications
Actuator typeHandwheel
Collet system5C
Coolant throughNo
Maximum collet capacity in1-1/16
Nose diameter2.2500
Overall length in5-3/8
Projection4.2500
Spindle sizeD1-4
Through coolantNonthrough Coolant
Tir0.000500
