Balax

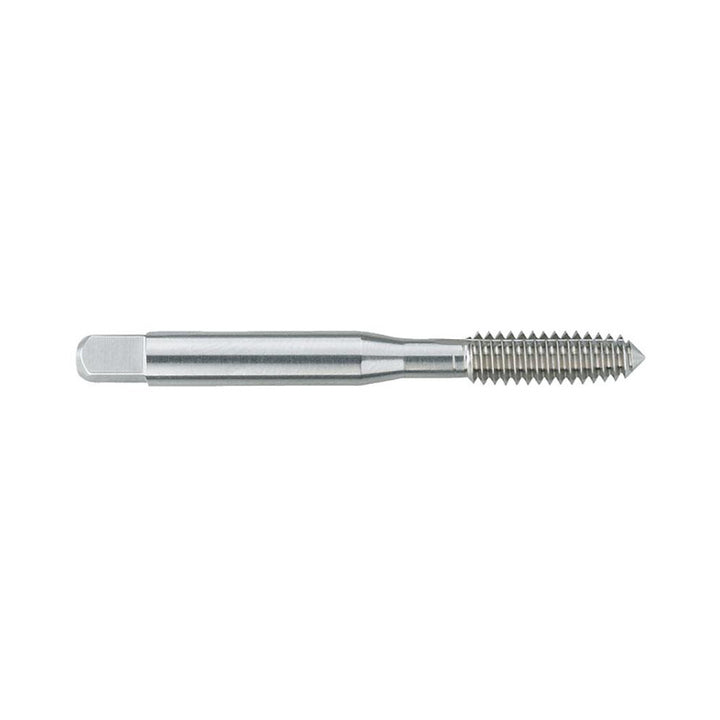

#8-32 UNC High-Speed Steel Tap - Balax 11642-000
MFR# 11642-000Series BXP
$21.83List $28.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#8-32
Description
The Balax 11642-000 is a #8-32 UNC High-Speed Steel tap.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Chamfered threads4P
Coolant throughNo
MaterialHigh-Speed Steel
Oil grooves1
Overall length in2-1/8
Shank diameter0.1680
Square size0.1310
Tapping depth0.7500
Thread directionRight Hand
Thread length0.4700
Thread limitH2
Thread size in#8-32
Thread standardUNC
