Balax

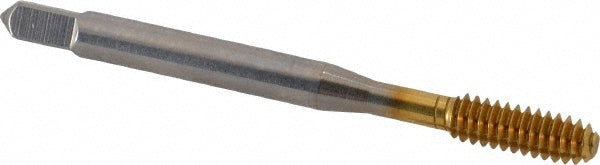

#10-24 UNC High-Speed Steel Tap, TiN - Balax 11964-01T
MFR# 11964-01TSeries BXB
$25.15List $31.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#10-24
CoatingTiN
Description
The Balax 11964-01T is a #10-24 UNC High-Speed Steel tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads2.5P
Class of fit3B
Coating finishTiN
Coolant throughNo
MaterialHigh-Speed Steel
Oil grooves1
Overall length in2-3/8
Shank diameter0.1940
Square size0.1520
Tapping depth0.8750
Thread directionRight Hand
Thread length0.6000
Thread limitH4
Thread size in#10-24
Thread standardUNC
