#12-24 UNC High-Speed Steel Tap - Balax 12405-010
MFR# 12405-010Series BXB
$21.99List $28.20
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#12-24
Description

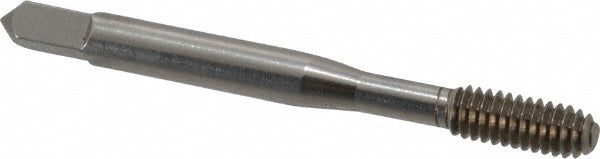

The Balax 12405-010 is a #12-24 UNC High-Speed Steel tap.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads2.5P
Class of fit2B; 3B
Coolant throughNo
MaterialHigh-Speed Steel
Oil grooves1
Overall length in2-3/8
Shank diameter0.2200
Square size0.1650
Tapping depth0.9375
Thread directionRight Hand
Thread length0.6200
Thread limitH5
Thread size in#12-24
Thread standardUNC
