Balax

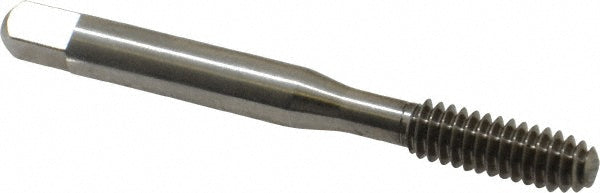

1/4-20 UNC High-Speed Steel Tap - Balax 12643-010
MFR# 12643-010Series BXB
$21.80List $27.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/4-20
Description
The Balax 12643-010 is a 1/4-20 UNC High-Speed Steel tap.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads2.5P
Coolant throughNo
MaterialHigh-Speed Steel
Oil grooves1
Overall length in2-1/2
Shank diameter0.2550
Square size0.1910
Tapping depth1.0000
Thread directionRight Hand
Thread length0.7900
Thread limitH3
Thread size in1/4-20
Thread standardUNC
