Balax
1/4-20 UNC High-Speed Steel Tap, TiN - Balax 12644-01T
MFR# 12644-01TSeries BXB
$28.73List $36.21
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/4-20
CoatingTiN
Description

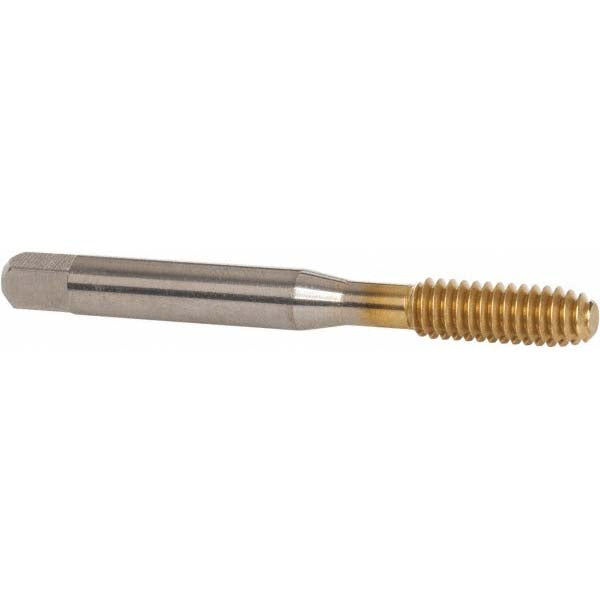

The Balax 12644-01T is a 1/4-20 UNC High-Speed Steel tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads2.5P
Class of fit3B
Coating finishTiN
Coolant throughNo
MaterialHigh-Speed Steel
Oil grooves1
Overall length in2-1/2
Shank diameter0.2550
Square size0.1910
Tapping depth1.0000
Thread directionRight Hand
Thread length0.7900
Thread limitH4
Thread size in1/4-20
Thread standardUNC
