Balax
1/4-20 UNC Powdered Metal High-Speed Steel Tap, Super Titanium Nitride - Balax 12772-91U
MFR# 12772-91USeries BXSTAINLESS
$35.55List $45.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/4-20
CoatingSuper Titanium Nitride
Description

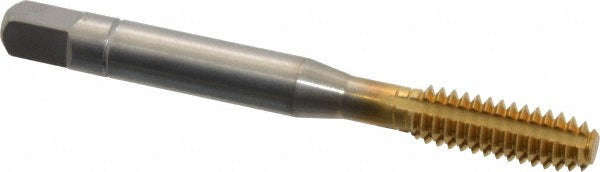

The Balax 12772-91U is a 1/4-20 UNC Powdered Metal High-Speed Steel tap with a Super Titanium Nitride finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads2.5P
Class of fit2B
Coating finishSuper Titanium Nitride
Coolant throughNo
MaterialPowdered Metal High-Speed Steel
Material applicationStainless Steel
Oil grooves1
Overall length in2-1/2
Shank diameter0.2550
Square size0.1910
Tapping depth1.0000
Thread directionRight Hand
Thread length0.7900
Thread limitH8
Thread size in1/4-20
Thread standardUNC
