Balax

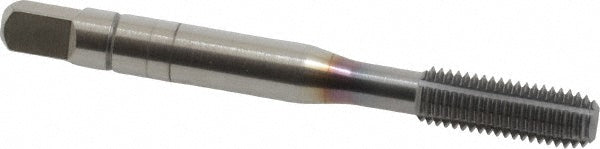

1/4-28 UNF Powdered Metal High-Speed Steel Tap, TiCN - Balax 12992-91C
MFR# 12992-91CSeries BXSTEEL
$37.01List $47.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/4-28
CoatingTiCN
Description
The Balax 12992-91C is a 1/4-28 UNF Powdered Metal High-Speed Steel tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads2.5P
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialPowdered Metal High-Speed Steel
Material applicationSteel
Oil grooves1
Overall length in2-1/2
Shank diameter0.2550
Square size0.1910
Tapping depth1.0000
Thread directionRight Hand
Thread length0.7900
Thread limitH7
Thread size in1/4-28
Thread standardUNF
