Balax

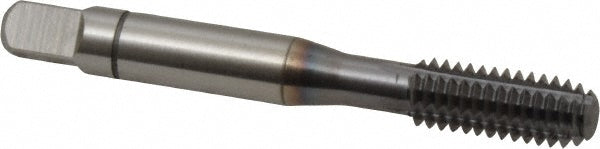

5/16-18 UNC Powdered Metal High-Speed Steel Tap, TiCN - Balax 13172-91C
MFR# 13172-91CSeries BXSTEEL
$42.75List $54.82
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size5/16-18
CoatingTiCN
Description
The Balax 13172-91C is a 5/16-18 UNC Powdered Metal High-Speed Steel tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads2.5P
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialPowdered Metal High-Speed Steel
Material applicationSteel
Oil grooves1
Overall length in2-23/32
Shank diameter0.3180
Square size0.2380
Tapping depth1.1250
Thread directionRight Hand
Thread length0.8800
Thread limitH9
Thread size in5/16-18
Thread standardUNC
