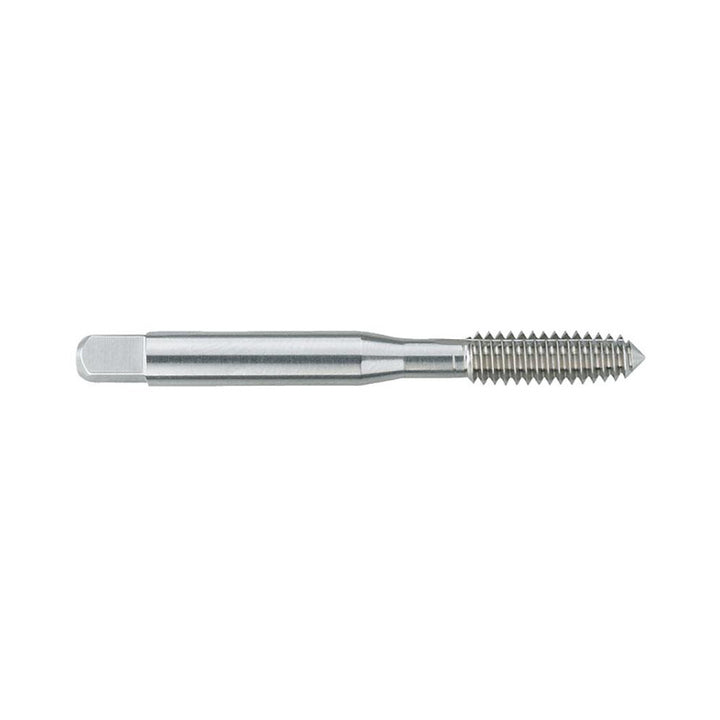

5/16-24 UNF High-Speed Steel Tap - Balax 13287-000
MFR# 13287-000Series BXP
$25.32List $31.91
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size5/16-24
Description
The Balax 13287-000 is a 5/16-24 UNF High-Speed Steel tap.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Chamfered threads4P
Class of fit2B
Coolant throughNo
MaterialHigh-Speed Steel
Oil grooves1
Overall length in2-23/32
Shank diameter0.3180
Square size0.2380
Tapping depth1.1250
Thread directionRight Hand
Thread length0.8800
Thread limitH7
Thread size in5/16-24
Thread standardUNF
