Balax

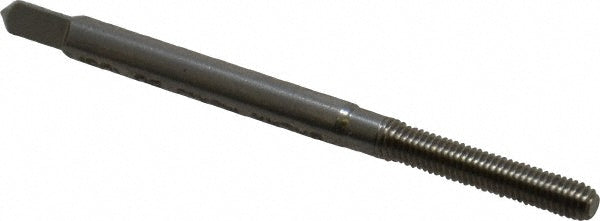

M3x0.5 Metric High-Speed Steel Tap - Balax 17563-010
MFR# 17563-010Series BXMB
$26.77List $34.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Balax 17563-010 is a Metric High-Speed Steel tap.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads2.5P
Class of fit4H
Coolant throughNo
MaterialHigh-Speed Steel
Oil grooves0
Overall length in1-15/16
Shank diameter0.1410
Square size0.1100
Thread directionRight Hand
Thread length in5/8
Thread limitD3
Thread size (mm)M3x0.5
Thread standardMetric
