Balax

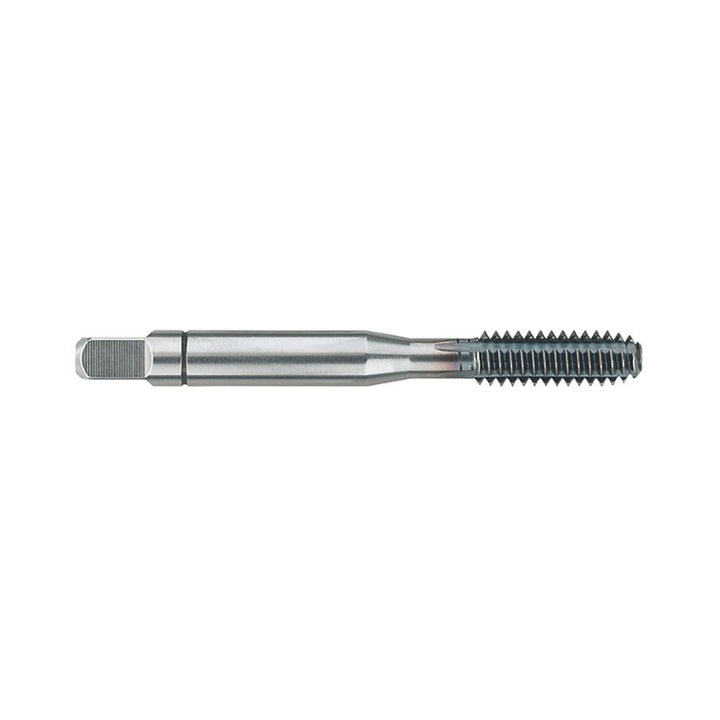

M3.5x0.6 Metric Powdered Metal High-Speed Steel Tap, TiCN - Balax 17877-81C
MFR# 17877-81CSeries BXSTEEL
$31.93List $40.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiCN
Description
The Balax 17877-81C is a Metric Powdered Metal High-Speed Steel tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads2.5P
Class of fit6H
Coating finishTiCN
Coolant throughNo
MaterialPowdered Metal High-Speed Steel
Material applicationSteel
Oil grooves2
Overall length in2
Shank diameter0.1410
Square size0.1100
Tapping depth0.6875
Thread directionRight Hand
Thread length0.4500
Thread limitD7
Thread size (mm)M3.5x0.6
Thread standardMetric
