Balax

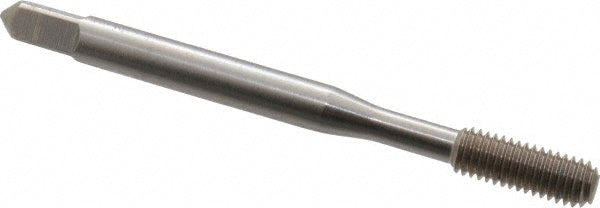

M5x0.8 Metric High-Speed Steel Tap - Balax 18188-010
MFR# 18188-010Series BXMOTL
$28.44List $36.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Balax 18188-010 is a Metric High-Speed Steel tap.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5P
Class of fit6H
Coolant throughNo
MaterialHigh-Speed Steel
Oil grooves1
Overall length in2-3/8
Shank diameter0.1940
Square size0.1520
Tapping depth0.8750
Thread directionRight Hand
Thread length0.6000
Thread limitD8
Thread size (mm)M5x0.8
Thread standardMetric
