Balax

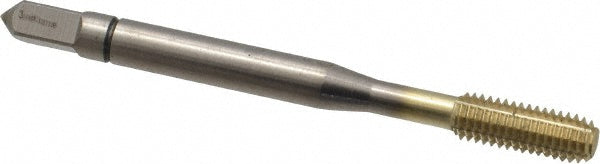

M5x0.8 Metric Powdered Metal High-Speed Steel Tap, Bal-Plus - Balax 18278-91L
MFR# 18278-91LSeries BXDIECAST
$39.10List $50.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingBal-Plus
Description
The Balax 18278-91L is a Metric Powdered Metal High-Speed Steel tap with a Bal-Plus finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads2.5P
Class of fit6H
Coating finishBal-Plus
Coolant throughNo
MaterialPowdered Metal High-Speed Steel
Material applicationDie Cast Aluminum
Oil grooves1
Overall length in2-3/8
Shank diameter0.1940
Square size0.1520
Tapping depth0.8750
Thread directionRight Hand
Thread length0.6000
Thread limitD8
Thread size (mm)M5x0.8
Thread standardMetric
