Balax
1/4-28 UNF HSS Spiral Point Tap - Balax 30093-000
MFR# 30093-000Series BX100
$22.44List $28.28
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
Description

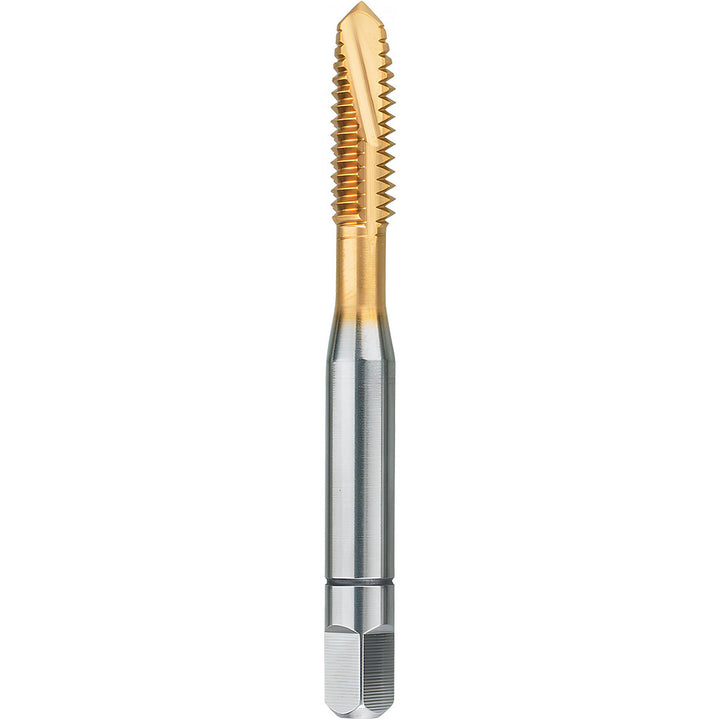

The Balax 30093-000 is a 1/4-28 UNF HSS Spiral Point tap. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coolant throughNo
Interrupted threadNo
MaterialHSS
Material applicationLow-Carbon Steel; 300 Stainless Steel; Wrought Aluminum Alloy; Die Cast Aluminum; Die Cast Zinc; Magnesium; Copper; Brass; Bronze Castings
Material gradeM42
Neck length in3/8
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
StyleSpiral Point
Threads per inch28
Thread directionRight Hand
Thread length in5/8
Thread limitH3
Thread pitch0.0357
Thread size in1/4-28
Thread standardUNF
