Balax

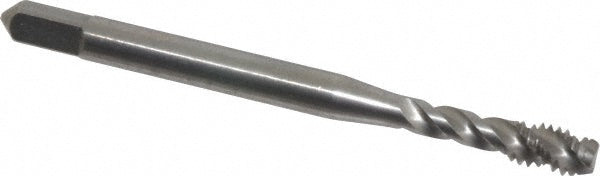

#8-32 UNC Powdered Metal Tap - Balax 40054-010
MFR# 40054-010Series BX200
$30.53List $38.48
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#8-32
Description
The Balax 40054-010 is a #8-32 UNC Powdered Metal tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Brass; Bronze; Carbon Steel; Copper; Magnesium; Stainless Steel; Wrought Aluminum Alloy; Zinc
Material gradeM42
Neck length in3/4
Number of flutes3
Overall length in2-1/8
OversizeNo
Shank diameter0.1680
Square size0.1310
Threads per inch32
Thread directionRight Hand
Thread length0.5000
Thread limitH4
Thread size in#8-32
Thread standardUNC
