Balax

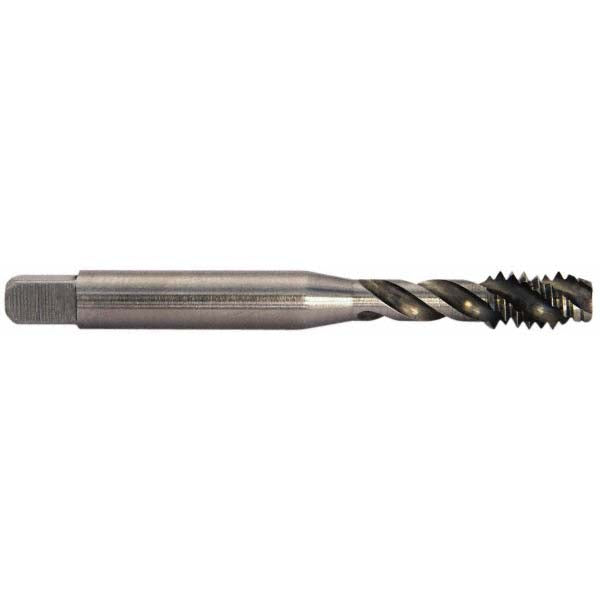

#10-24 UNC Powdered Metal Tap - Balax 40065-010
MFR# 40065-010Series BX200
$30.00List $38.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
Description
The Balax 40065-010 is a #10-24 UNC Powdered Metal tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Brass; Bronze; Carbon Steel; Copper; Magnesium; Stainless Steel; Wrought Aluminum Alloy; Zinc
Material gradeM42
Neck length in7/8
Number of flutes3
Overall length in2-3/8
OversizeYes
Shank diameter0.1940
Square size0.1520
Threads per inch24
Thread directionRight Hand
Thread length0.6400
Thread limitH5
Thread size in#10-24
Thread standardUNC
