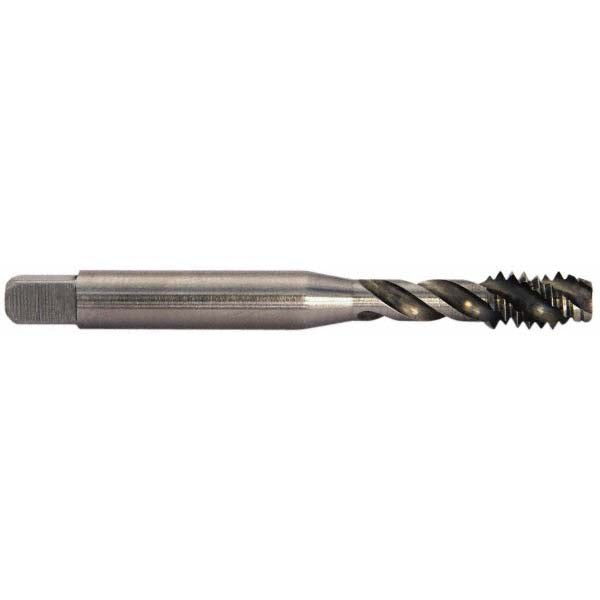

1/4-28 UNF Powdered Metal Tap - Balax 40095-010
MFR# 40095-010Series BX200
$33.87List $43.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
Description
The Balax 40095-010 is a 1/4-28 UNF Powdered Metal tap. 3 flutes.
Specifications
ChamferModified Bottoming
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Brass; Bronze; Carbon Steel; Copper; Magnesium; Stainless Steel; Wrought Aluminum Alloy; Zinc
Material gradeM42
Neck length1.0000
Number of flutes3
Overall length in2-1/2
OversizeYes
Shank diameter0.2550
Square size0.1910
Thread directionRight Hand
Thread length0.8300
Thread limitH5
Thread size in1/4-28
Thread standardUNF
