Balax

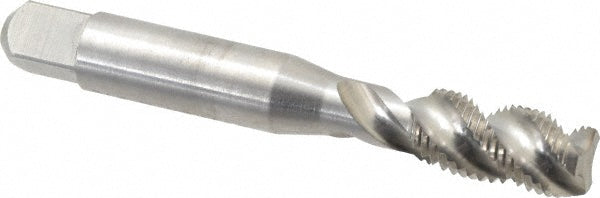

3/8-24 UNF Powdered Metal Tap - Balax 40137-010
MFR# 40137-010Series BX200
$42.34List $54.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-24
Description
The Balax 40137-010 is a 3/8-24 UNF Powdered Metal tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Brass; Bronze; Carbon Steel; Copper; Magnesium; Stainless Steel; Wrought Aluminum Alloy; Zinc
Material gradeM42
Neck length in1-1/4
Number of flutes3
Overall length in2-15/16
OversizeYes
Shank diameter0.3810
Square size0.2860
Threads per inch24
Thread directionRight Hand
Thread length0.9800
Thread limitH7
Thread size in3/8-24
Thread standardUNF
