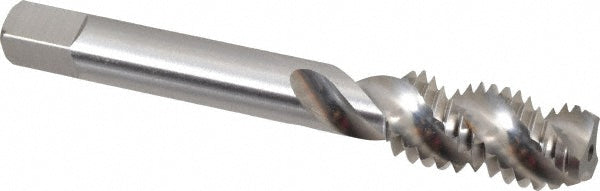

1/2-13 UNC Powdered Metal Tap - Balax 40163-000
MFR# 40163-000Series BX200
$81.20List $102.33
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-13
Description
The Balax 40163-000 is a 1/2-13 UNC Powdered Metal tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit3B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Brass; Bronze; Carbon Steel; Copper; Magnesium; Stainless Steel; Wrought Aluminum Alloy; Zinc
Material gradeM42
Number of flutes3
Overall length in3-3/8
OversizeNo
Shank diameter0.3670
Square size0.2750
Threads per inch13
Thread directionRight Hand
Thread limitH3
Thread size in1/2-13
Thread standardUNC
