Balax

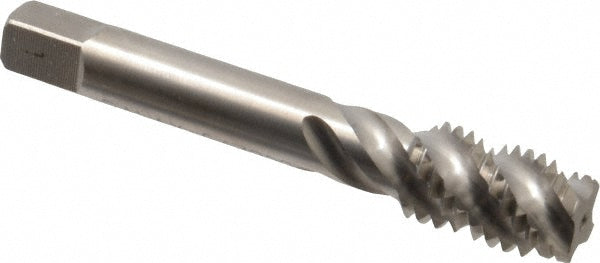

5/8-11 UNC Powdered Metal Tap - Balax 40183-000
MFR# 40183-000Series BX200
$143.33List $183.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-11
Description
The Balax 40183-000 is a 5/8-11 UNC Powdered Metal tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit3B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Brass; Bronze; Carbon Steel; Copper; Magnesium; Stainless Steel; Wrought Aluminum Alloy; Zinc
Material gradeM42
Number of flutes4
Overall length in3-13/16
OversizeNo
Shank diameter0.4800
Square size0.3600
Threads per inch11
Thread directionRight Hand
Thread limitH3
Thread size in5/8-11
Thread standardUNC
