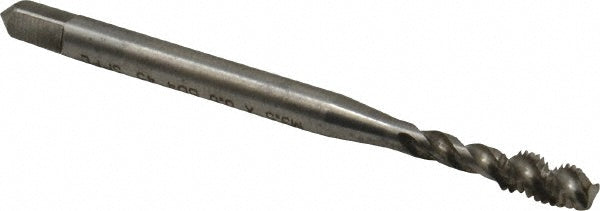

M3.5x0.6 Metric Coarse Powdered Metal Tap - Balax 43024-010
MFR# 43024-010Series BX200
$30.00List $38.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Balax 43024-010 is a Metric Coarse Powdered Metal tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit4H
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Brass; Bronze; Carbon Steel; Copper; Magnesium; Stainless Steel; Wrought Aluminum Alloy; Zinc
Material gradeM42
Neck length in11/16
Number of flutes3
Overall length in2
OversizeNo
Shank diameter0.1410
Square size0.1100
Thread directionRight Hand
Thread length0.4800
Thread limitD4
Thread pitch (mm)0.60
Thread size (mm)M3.5x0.6
Thread standardMetric Coarse
